| Maximum tension: | 2*70 or 1*140KN | Continuous tension: | 2*65 or 1*130KN |
|---|---|---|---|
| Max speed: | 5km/h | Number of grooves: | 2*6 |
| Max pullback: | 2*63 or 2*126KN | Max speedback: | 2*1.3km/h |
| Max suitable conductor diameter: | 40mm | Weight: | 8500kg |
| Cahaya Tinggi: | peralatan merangkai ketegangan,transmission line stringing tools |
||

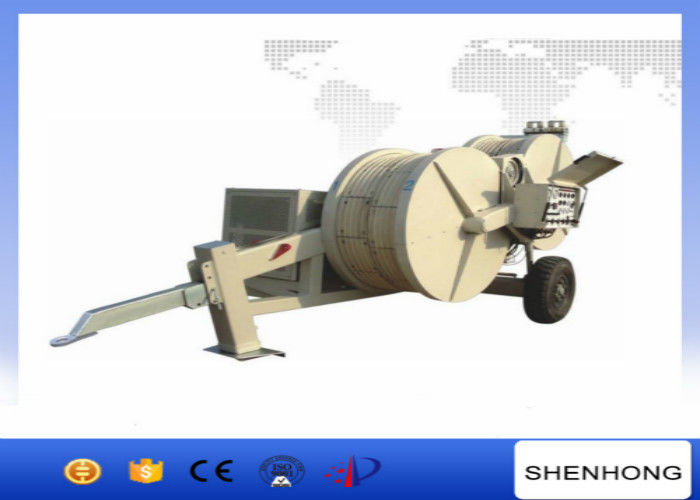

Nylon Bullwheel Overhead Line Stringing Equipment For Opgw Stringing
Application
It is adequate to tension releasing various conducts and earthwires, and it as one pull one or one pull four using. It is suitable for conductor,ground wire and OPGW ,etc.
Features
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. Attached two sets of hydraulic power output interface to connect hydraulic reel stand.
Main component
1. Engine : Deutz air-cooled diesel engine .
2. Main pump and main motor : Rexroth(BOSCH)
3. Reducer : RR(Italian)
4. Radiator : AKG
5. Hydraulic instrument :
6. Hydraulic valve: Rexroth(BOSCH)
Technical data of 2*70KN nylon bullwheel hydraulic laying puller tensioner for OPGW stringing
| Model Type | SA-YZ2*70 |
| Maximum Tension(KN) | 2*70 or 1*140 |
| Continuous Tension(KN) | 2*65 or 1*130 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1500 |
| Number of groove | 2*6 |
| Maximum pullback(KN) | 2*70 or 1*140 |
| Maximum speedback(km/h) | 2*1.3 |
| Maximum suitable conductor diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 82.5/2500 |
| Dimensions(mm) | 5300*2300*2900 |
| Weight(kg) | 8500 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
