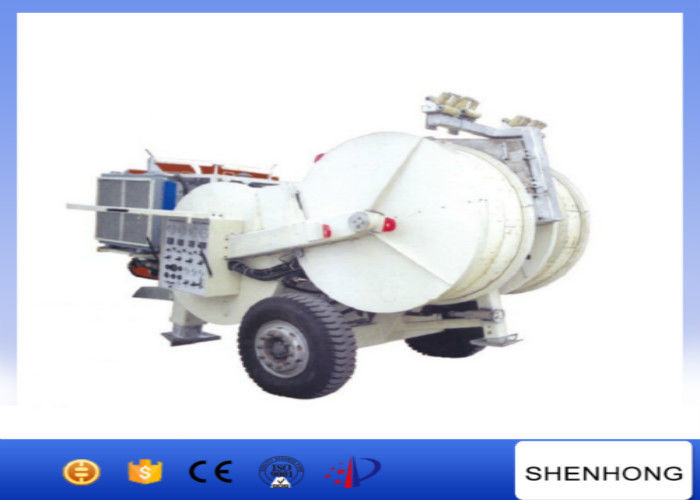

SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner

SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner
SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner

Gambar besar :  SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner Harga terbaik

Detail produk:
Place of Origin: Jiangsu,China
Nama merek: SHENHONG
Sertifikasi: BV,ISO
Model Number: SA-YZ4*45
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: negotiation
Packaging Details: pv plastic
Delivery Time: 20 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Detil Deskripsi produk
Application: construction Maximum tension: 4*45 or 2*90KN
Continuous tension: 4*40 or 2*80KN Maximum speed: 5km/h
Number of grooves: 4*5 Weight: 11500KG
Cahaya Tinggi:

peralatan merangkai ketegangan

,

transmission line stringing tools

SA-YZ4*45 Hydraulic 4*5 grooves cable stringing puller tensioner



Application

It is adequate to tension releasing various conducts and earthwires, and it as one pull four or one pull two using.



Feature :

1. Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .

4. Attached four sets of hydraulic power output interface to connect hydraulic conductor reel stand.



Main component

1.Engine :Deutz water-cooled diesel engine .

2.Main pump and main motor : Rexroth(BOSCH)

3.Reducer : RR(Italian)

4.Hydraulic instrument :

5.Main hydraulic valve:Rexroth(BOSCH)



Technical data of SA-YZ4*45 Hydraulic 4*5 grooves cable stringing puller tensioner

Model Type SA-YZ4*45
Maximum Tension(KN) 4*45 or 2*90
Continuous Tension(KN) 4*40 or 2*90
Maximum speed(km/h) 5
Bullwheel bottom of groove diameter(mm) Φ1500
Number of groove 4*5
Maximum pullback(KN) 4*45 or 2*90
Maximum speedback(km/h) 4*1
Maximum suitable conductor diameter(mm) Φ40
Engine power/speed(kw/rpm) 82/2500
Dimensions(mm) 4700*2350*2800
Weight(kg) 11500

SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner 0

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
