Rincian produk
Place of Origin: Jiangsu,China
Nama merek: shenhong
Sertifikasi: BV,CE,ISO
Model Number: LZ
Syarat Pembayaran & Pengiriman
Minimum Order Quantity: 1 set
Harga: Dapat dinegosiasikan
Packaging Details: PVC plastic
Delivery Time: ten days after the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Sumber daya: |
TANGAN |
Kapasitas: |
3-10Ton |
Rem: |
Rem Hidrolik Otomatis |
Diameter: |
800-1200 (Disesuaikan) |
Warna: |
merah, kuning, hijau, dll. |
Diameter kumparan maks: |
2300, 2800, 3300, 3500mm |
Lebar koil maks: |
1250,1450,1750,1850mm |
Bobot: |
900,1500, 2300,2800kg |
Sumber daya: |
TANGAN |
Kapasitas: |
3-10Ton |
Rem: |
Rem Hidrolik Otomatis |
Diameter: |
800-1200 (Disesuaikan) |
Warna: |
merah, kuning, hijau, dll. |
Diameter kumparan maks: |
2300, 2800, 3300, 3500mm |
Lebar koil maks: |
1250,1450,1750,1850mm |
Bobot: |
900,1500, 2300,2800kg |

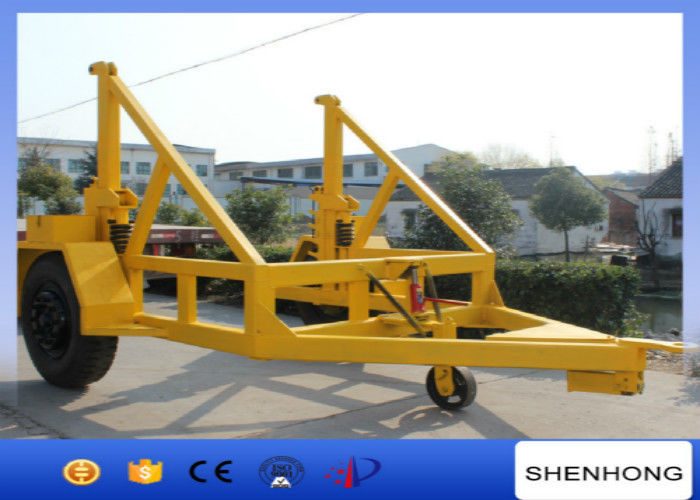

Multifunction Cable Drum Trailer Cable Reel Carrier For Hauling And Lifting
Application
It is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.
Note
We can make products with special specification as your requirements.
Technical data of Multifunction cable drum trailer, cable reel carrier for hauling and lifting
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LZ-3T | 3T | 900 | ≤2300 | ≤1250 | 3800×2300×2200 |
| LZ-5T | 5T | 1500 | ≤2800 | ≤1450 | 4000×2600×2500 |
| LZ-8T | 8T | 2300 | ≤3300 | ≤1750 | 4300×3200×2700 |
| LZ-10T | 10T | 2800 | ≤3500 | ≤1850 | 4300×3400×2800 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
