Rincian produk
Place of Origin: Jiangsu, China
Nama merek: SHENHONG
Sertifikasi: ISO
Model Number: SKJL-1
Syarat Pembayaran & Pengiriman
Minimum Order Quantity: 10pcs
Harga: Dapat dinegosiasikan
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Working load (kn): |
10 |
Applicable wire rope: |
10-14mm |
Weight (kg): |
1.4 |
Max Gap: |
15mm |
Item: |
Aluminum come along clamp |
Name: |
SKJL-1 Insulated Conductor Cable Pulling Clamp Come Along Clamp |
Working load (kn): |
10 |
Applicable wire rope: |
10-14mm |
Weight (kg): |
1.4 |
Max Gap: |
15mm |
Item: |
Aluminum come along clamp |
Name: |
SKJL-1 Insulated Conductor Cable Pulling Clamp Come Along Clamp |

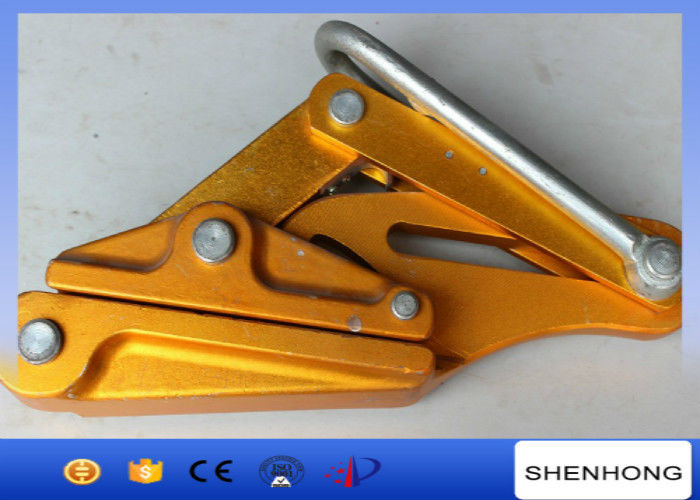

Insulated Conductor Automatic Cable Pulling Clamp SKJL-1 15mm Max Gap
The automatic clamp is specially designed for insulated conductor. The specially designed jaw of clamp can hold the conductor firmly and protect the insulation of conductor well.
The clamp body is forged from high strength aluminum alloy.
Data Sheet
|
Order number
|
Model
|
Rated load (kN)
|
Diameter of applicable wire
|
Maximum gap (mm)
|
Weight (kg)
|
Remark
|
|
13182
|
SKJL-0.5
|
5
|
Φ6~Φ10
|
12
|
1.0
|
Aluminum alloy
|
|
13192
|
SKJL-1
|
10
|
Φ10~Φ14
|
15
|
1.4
|
Aluminum alloy
|
|
13202
|
SKJL-1.5
|
15
|
Φ14~Φ20
|
22
|
3
|
Aluminum alloy
|
|
13212
|
SKJL-2
|
20
|
Φ20~Φ25
|
27
|
4.0
|
Aluminum alloy
|
|
13213
|
SKJLA-2
|
20
|
Φ25~Φ29
|
31
|
4.0
|
Aluminum alloy
|
