Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Rated load(KN): | 15 | Weight(kg): | 1.4 |
|---|---|---|---|
| Material: | Aluminum Alloy | Max Open: | 18mm |
| Applicable conductor: | 95-120mm2 | Application: | sag adjusting and tensioning |
| Cahaya Tinggi: | wire grip clamp,come along clamp |
||

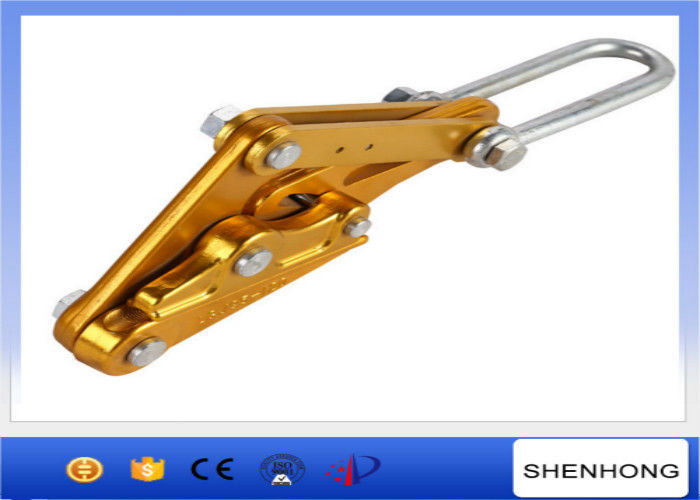

18MM Max Open Cable Pulling Clamps Cable Grips Wire Rope For Sag Adjusting / Tensioning
Quick Information
Model:SKL-15
Rated Load:15KN
Applicable Conductor:95-120mm2
Weight:1.4kg
Feature
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
Directions for use, maintenance and care for all kinds of all grips:
Before each use: Check all parts for distortion or misalignment; proper maintenance and field
inspection is necessary.
Check grip to be sure of correct type and size for the application.
Profile of the jaws and its teeth have to be kept always clean, dry, free of oil and grease to avoid a slipping of the wire.Avoid abrupt loading.
Increase tensile force slowly to avoid slipping of the wire or even damage of the teeth.
Lubricate only the rivets, never the jaws. Check mechanical condition of entire grip
Warning: When using grip never exceed Working load Limit WLL !
