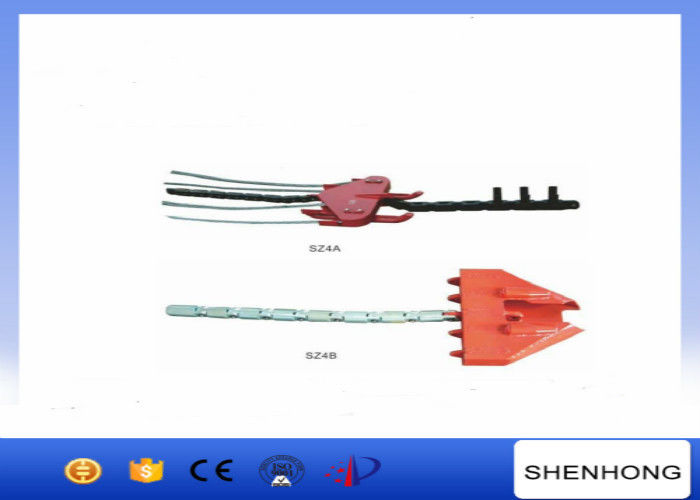

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors
Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors

Gambar besar :  Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors Harga terbaik

Detail produk:
Place of Origin: MADE IN CHINA
Nama merek: SHENGHONG
Sertifikasi: ISO
Model Number: SZ4A-13
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1pc
Harga: negotiation
Packaging Details: export package
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5pcs/day
Kontak
Detil Deskripsi produk
Name: Balancing Head Board Running Board Load Capacity: 13T
Applicable stringing block sheave width(mm): 100 Weight(kg): 139
Marks: Balance pulley structure Application: overhead line transmission
Cahaya Tinggi:

cable lug crimping tool

,

hydraulic compression tool

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors​





Data Sheet
Item No.
Model
Description
Rated Load (KN)
Weight (kg)
Marks
17231
SZ4A-13
Used for 660X100 stringing block
130
96
Balance pulley structure
17232
SZ4B-13
Used for 660X100 stringing block
130
65
Conductors are stringing separately from different bull wheels
17233
SZ4B-18
Used for 822X110 stringing block
180
110
17234
SZ4B-25
Used for 822X110 stringing block
250
110
17238
SZ4C-25
Used for 822X110 stringing block
250
110
17239
SZ4B-32
Used for 1024X125 stringing block
320
125
Application:
It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors.
The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks.
The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

Balancing Head Boards Overhead Line Construction Tools 130KN For Four Bundle Conductors 0

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
