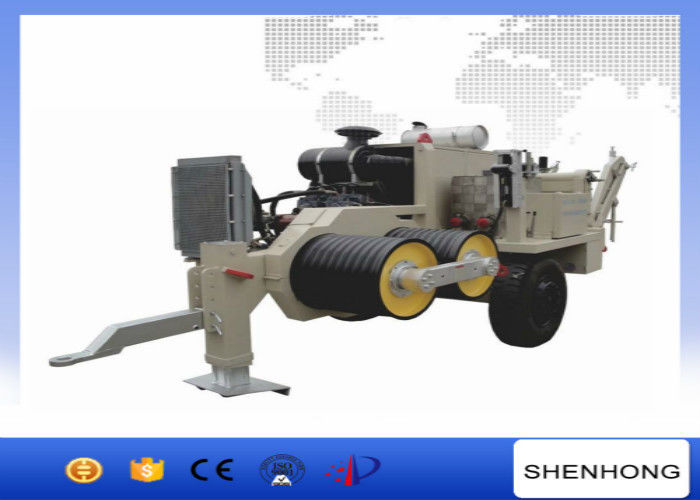

ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom

ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom
ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom

Gambar besar :  ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom Harga terbaik

Detail produk:
Place of Origin: MADE IN CHINA
Nama merek: SHENGHONG
Sertifikasi: ISO
Model Number: SA-YQ180
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1set
Harga: negotiation
Packaging Details: 20GP container
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Kontak
Detil Deskripsi produk
Product Name: Overhead Power Line Stringing Equipment SA-YQ180 Hydraulic Cable Puller Maximum linepull (kN): 180
Continuous linepull (kN): 150 Maximum linespeed (km/h): 5
Bullwheel grooves number: 9 Bullwheel bottom of groove diameter(mm): 630
Cahaya Tinggi:

hydraulic pulling machine

,

conductor stringing equipment

ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom ​



Essential parameter

Maximum linepull (kN) 180
Continuous linepull (kN) 150
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm)  Φ630
Bullwheel grooves number  9
Maximum suitable steelrope diameter (mm) Φ24
Maximum through connector diameter (mm) Φ63
Engine power /speed (kW/rpm) 209/2100
Dimensions (mm)

5500×2170×2570
Weight (kg) 7500



﹒Feature :

  • infinitely variable speed and linepull control ,the pull in the rope can be read on the line pull gauge .
  • the Max.pull for conductor –stringing operation can preset ,automatic overpull protection system .
  • Spring applied –hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
  • hydraulic pullrope pinch device ,convenient for replacing reel .
  • attached reel winder with automatically level wind .load and unload conveniently ..

Main component :

  • Engine :Cummins (USA)water –cooled diesel engine .
  • main variable displacement pump ,main motor :Rexroth (BOSCH)
  • Reducer : RR (Italian )
  • Main hydraulic valves: Rexroth (BOSCH)
  • Radiator :AKG
  • Hydraulic instrument :
  • Mating with model GSP1600 drum

ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom 0

Label:

peralatan stringing konduktor,

mesin menarik hidrolik,

tensioner hidrolik
