Rumah > Produk > Alat Ereksi Menara > 5T Fast Speed Gas Engine Powered Winch JJM5B With Honda Engine 13HP

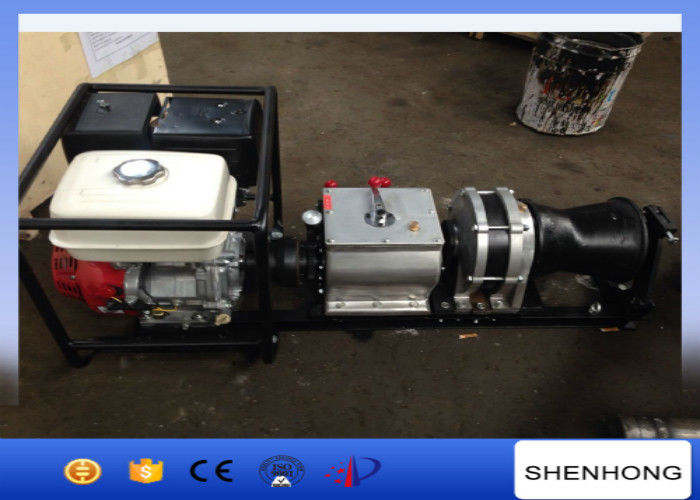

5T Fast Speed Gas Engine Powered Winch JJM5B With Honda Engine 13HP

Rincian produk

Place of Origin: MADE IN CHINA

Nama merek: SHENGHONG

Sertifikasi: ISO

Model Number: JJM5B

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1set

Harga: USD1000-1200

Packaging Details: plywood case

Delivery Time: 10 days after payment

Payment Terms: L/C, T/T, Western Union

Dapatkan Harga Terbaik
Menyoroti:

tali kepang ganda

,

mixer beton diesel

,

Winch Bertenaga Mesin Gas 13HP

Jenis:
Winch Bertenaga Mesin Gas
Barang:
Mesin Kerek 5 Ton
Mesin:
Mesin bensin HONDA
Kekuasaan:
13HP
Aplikasi:
Penarikan Kabel
Bobot:
180KG
Jenis:
Winch Bertenaga Mesin Gas
Barang:
Mesin Kerek 5 Ton
Mesin:
Mesin bensin HONDA
Kekuasaan:
13HP
Aplikasi:
Penarikan Kabel
Bobot:
180KG
5T Fast Speed Gas Engine Powered Winch JJM5B With Honda Engine 13HP

5T Fast Speed Gas Engine Powered Winch JJM5B With Honda Engine 13HP





Quick Detail

1. Model:JJM5B

2. Load Capacity:5T

3. Weight:180kg

4. Power:HONDA Gasoline engine GX390



Application

1. It is used for tower erection,pole setting,stringing wire in electrical power line construction.

2. Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Feature

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Dimension(mm) Weight(kg)
JJM-5B HONDA  GX390 Fast 9 24 13HP 1100*498*600 180
Mid 15 14
Mid 30 9
Slow 50 5
