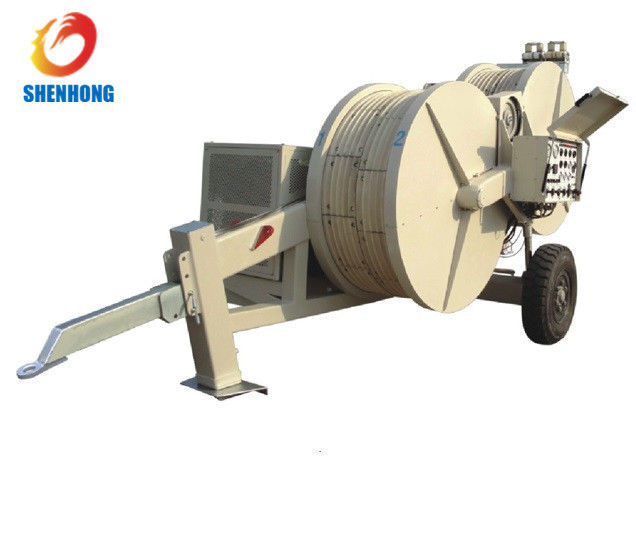

10T 100KN Hydraulic Puller Tensioner SA-YZ2*50 for overhead line construction

Rincian produk

Place of Origin: Jiangsu,China

Nama merek: Shenhong

Sertifikasi: ISO

Model Number: SA-YZ2*50

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1 set

Harga: US $35000~60000

Packaging Details: Export case

Delivery Time: 20 work days after deposit

Supply Ability: 200 Set/Sets per Month

Dapatkan Harga Terbaik
Menyoroti:

hydraulic pulling machine

,

hydraulic tensioner

Max tension(KN):
2*50 or 1*100
Continous tension(KN):
2*45 or 1*90
Max linespeed:
5km/h
Weight:
6500kg
Engine power/Speed:
51KW/2500rpm
Dimensions:
5130*2250*2910mm
Max tension(KN):
2*50 or 1*100
Continous tension(KN):
2*45 or 1*90
Max linespeed:
5km/h
Weight:
6500kg
Engine power/Speed:
51KW/2500rpm
Dimensions:
5130*2250*2910mm
10T 100KN Hydraulic Puller Tensioner SA-YZ2*50 for overhead line construction

Stringing equipment 100KN hydraulic tensioner SA-YZ2*50 for overhead line construction



Essential parameter

Maximum Tension(KN) 2*50 or 1*100
Continuous Tension(KN) 2*45 or 1*90
Maximum speed(km/h) 5
Bullwheel bottom of groove diameter(mm) /
Number of grooves 2*5
Maximum speedback(KN) 2*50 or 1*100
Maximum speedback(km/h) 2*1
Maximum suitable conductor diameter(mm) /
Engine power/speed(kw/rpm) 51/2500
Dimensions(mm) 5130*2250*2910
Weight(kg) 6500



Uses:It adequate to tension releasing various conductor and earthwires.



main component

1. Engine: Deutz air-cooled diesel engine.

2. Main pump/motor : Rexroth(BOSCH) .

3.Reducer:RR(Italian).

4.Hydraulic valve:Rexroth(BOSCH).

5. Radiator:AKG

6. Hydraulic instrument: .

7.It can choose the Chinese Deutz air-cooled engine.



Feature

1.Bullwheel with wearproof MC nylon lining segments.

2.Infinitely variable tension control and constant tension conductor stringing.

3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

4.Attached two sets of hydraulic power output interface to connect hydraulic reel stand.
