Rincian produk
Place of Origin: Jiangsu,China
Nama merek: Shenhong
Sertifikasi: ISO
Model Number: SA-YZM7.5
Syarat Pembayaran & Pengiriman
Minimum Order Quantity: 1 set
Harga: US $3000~5000
Packaging Details: Export case
Delivery Time: 20 work days after deposit
Supply Ability: 200 Set/Sets per Month
Max linepull: |
7.5KN |
Continous line: |
25KN |
Max linespeed: |
5m/min |
Weight: |
450kg |
Dimensions: |
2300*1250*1620mm |
Max linepull: |
7.5KN |
Continous line: |
25KN |
Max linespeed: |
5m/min |
Weight: |
450kg |
Dimensions: |
2300*1250*1620mm |

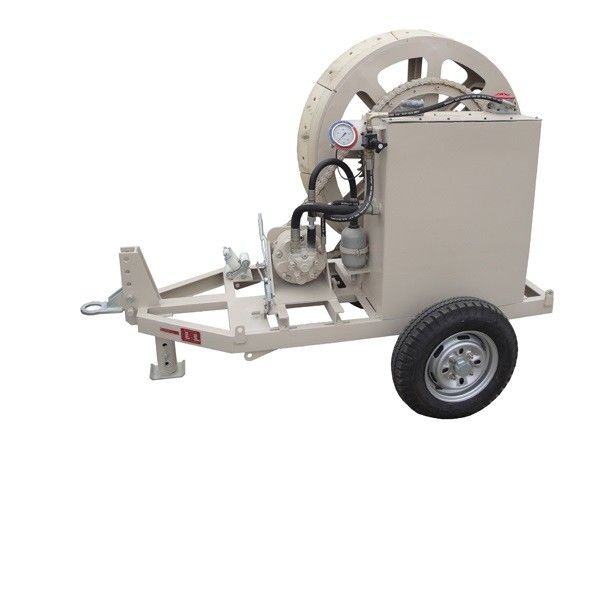

7.5KN winch type hydraulic brake tensioner linespeed 40m/min
Uses:Applied to power construction.
Feature:
1.Adopt retarding with hydraulic pressure;
2.Light and convenient to construct in mountainous area.
| Model | YZM7.5 | YZM7.5-2 |
| Bullwheel bottom of groove diameter(mm) | 1100 | 1100 |
| Maximum tension(KN) | 10 | 10 |
| Dimensions(mm) | 2300*1250*1620 | 2600*1250*1850 |
| Maximum speed(m/min) | 40 | 40 |
| Weight(kg) | 550 | 550 |
