Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kecepatan angkat: | manual | Jenis: | Angkat tuas |
|---|---|---|---|
| Kapasitas: | 6T | Tinggi Angkat: | 1,5 m |
| Sumber daya: | TANGAN | Jaminan: | 1 tahun |
| Bobot: | 25,5kg | ||
| Cahaya Tinggi: | alat penegang tali kawat,alat penarik kawat,Alat Penarik Kabel tinggi 1 |
||

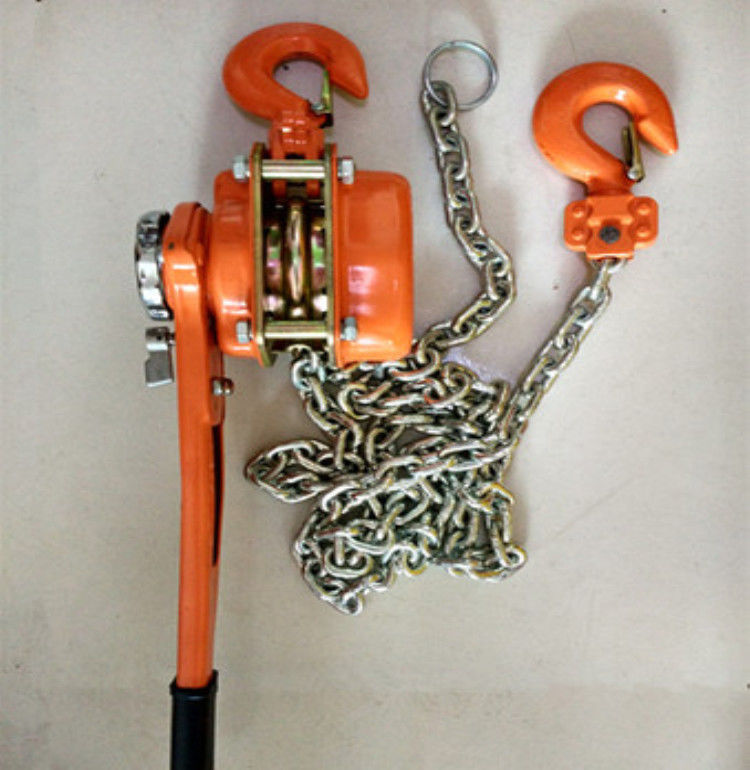

Capacity 6 ton lever hoist lifting height 1.5m chain dia 10mm
Application
Electric Chain Pulley Block/Chain Blocks Electric/Lifting Crane is for the lifting of objects and mechanical traction, tightening steel wire, aluminum wire .
Features
It is widely used in shipbuilding, electric power, transportation, construction, mining, telecommunications and other sectors of the equipment installation, lifting, pulling. Hand hoist is safe, reliable, durable, good performance, easy to repair, small volume, light weight, convenient to carry, not much manual force and high efficiency, the perfect structure and beautiful appearance. Hand chain hoist and hoist are called manual hoist. It is used to lift weights by human, and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load.
Used to tighten the wire, lifting equipment and it is suitable for high altitude operation.
Brake device adopts double pawl, so it is durable, safe and reliable.
The handle design of bi-directional ratchet, the handle can be reciprocating operation during up and down.
Design of brake and clutch device, when there’s no load, the position will be in the middle.
Can be hand chain and it can improve the work efficiency.
Technical Data
| Model | HSH0.75T | HSH1T | HSH1.5T | HSH2T | HSH3T | HSH6T | HSH9T | |
| Capacity(ton) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| Standard lifting height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Testing load(kN) | 11 | 12 | 22.5 | 30 | 37.5 | 75 | 112.5 | |
| Number of lifting chain | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Diameter of the chain(mm) | 6 | 6 | 7 | 8 | 10 | 10 | 10 | |
| G.W(kg) | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | |
| Dimension(mm) | A | 95 | 95 | 90 | 100 | 100 | 110 | 110 |
| B | 60 | 60 | 65 | 65 | 85 | 85 | 85 | |
| C | 135 | 135 | 145 | 145 | 195 | 250 | 335 | |
| D | 255 | 255 | 365 | 365 | 365 | 365 | 365 | |
| E | 24 | 24 | 31 | 31 | 34 | 43 | 55 | |
| L | 300 | 300 | 365 | 3654 | 440 | 575 | 700 | |
| increase of weight per metre of lifting height(kg) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 |
|
