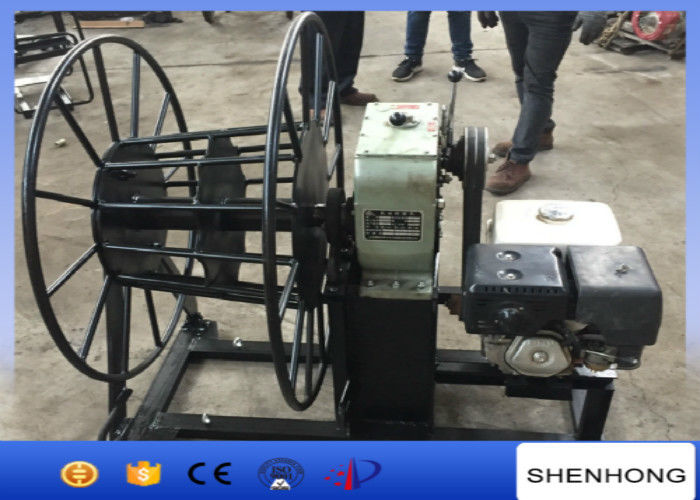

5 Ton Gasoline Engine Wire Rope Take Up Pulling Winch for Stringing Rope

Rincian produk

Place of Origin: Jiangsu,China

Nama merek: SHENHONG

Sertifikasi: CE,BV,ISO

Model Number: XFSJ

Syarat Pembayaran & Pengiriman

Minimum Order Quantity: 1 set

Harga: Dapat dinegosiasikan

Packaging Details: wooden case

Delivery Time: ten days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set/Sets per Month

Dapatkan Harga Terbaik
Menyoroti:

alat pengencang tali kawat

,

alat tarik kawat

,

Tali Kawat Mesin Bensin 5 Ton

Aplikasi:
Konstruksi
Kapasitas:
50KN
Mesin:
Bensin LIFAN
Kekuasaan:
13HP
Bahan:
Baja
Bobot:
180KG
Aplikasi:
Konstruksi
Kapasitas:
50KN
Mesin:
Bensin LIFAN
Kekuasaan:
13HP
Bahan:
Baja
Bobot:
180KG
5 Ton Gasoline Engine Wire Rope Take Up Pulling Winch for Stringing Rope

5Ton Gasoline Engine Wire Rope Take Up Pulling Winch for Stringing rope



Application

Stringing equipment petrol/gasoline engine driven hoist pulling winch is used to display or collect overhead wires including cables.It takes up conductor, cable and stringing conductor,cable.This machine is made higher and more convenient to display and collect wires.



Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Work principle engine powered winch

The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.



Technical data of 5Ton Gasoline Engine Wire Rope Take Up Pulling Winch for Stringing rope

Model Engine Rated Load Speed(m/min) Weight(Kg)
XFSJ China motor gasoline engine 20KN 13.3-24.3 180





5 Ton Gasoline Engine Wire Rope Take Up Pulling Winch for Stringing Rope 0



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
