Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Engine: | diesel engine | Power: | 6.3KW,3600rpm |
|---|---|---|---|
| Capacity: | 50KN | Motor: | diesel |
| Weight: | 200kg | Dimension: | 1200*600*750mm |
| Warranty: | one year | Package: | plywood case |
| Cahaya Tinggi: | engine powered winch,wire rope winch |
||

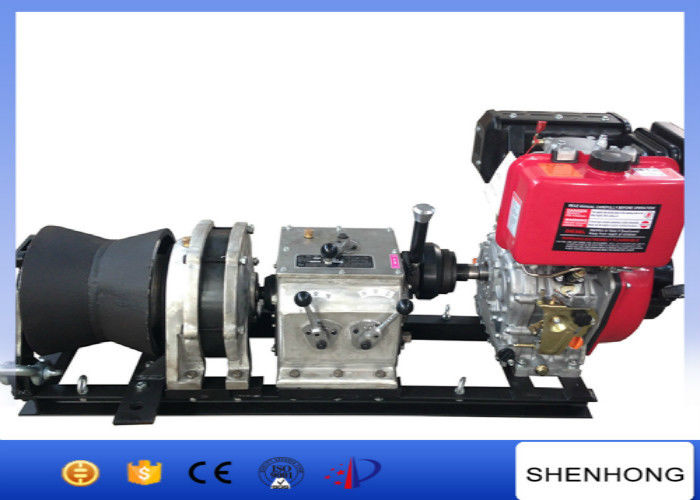

50KN Fast Speed Cable Pulling Winch Air Cooled Diesel Enginen By Shaft
Application
It is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Feature
1. Small size & compact structure
2. Light weight
3. High efficiency
4. Safe and reliable
Technical data of 50KN Fast speed air cooled diesel engine cable pulling winch driven by shaft
| Model | Engine | Power | Gear: Forward | Pull Force(KN) | Speed(m/min) | Weight(Kg) | Dimension(mm) |
| JJM-5B | Air Cooled Diesel Engine | 6.3KW, 3600rpm | SlowⅠ | 50 | 5 | 200 | 1200*600*750 |
| Slow Ⅱ | 30 | 9 | |||||
| Fast Ⅰ | 15 | 14 | |||||
| Fast Ⅱ | 9 | 24 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
It is packed with standard export plywood case
