25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2

Cina 25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2 pemasok
25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2 pemasok 25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2 pemasok

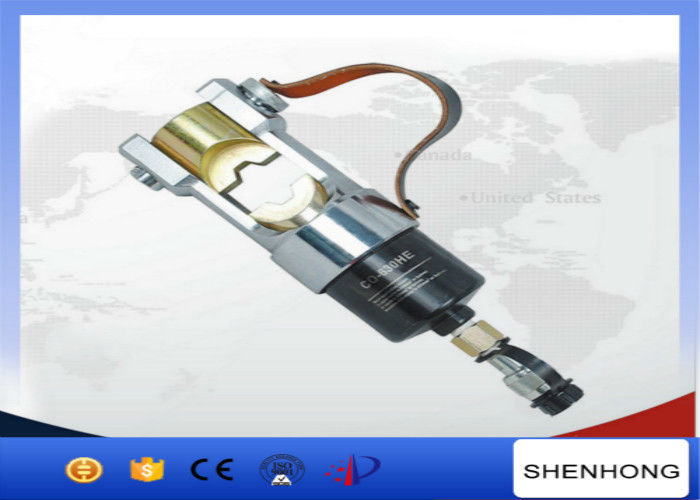

Gambar besar :  25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2

Detail produk:

Place of Origin: Jiangsu,China
Nama merek: SHENHONG
Sertifikasi: ISO
Model Number: CO-630HE

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 2pcs
Harga: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Contact Now
Detil Deskripsi produk
Crimping range: 150-630 Crimping force: 25T
Stroke: 25mm Weight: 5.6kg
Package: steel case Crimping type: hexagon crimping

25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2​





Tools Introduction

CO-630HE is a Remote Control Hydraulic Crimping Head, works with external hydraulic pump. Capable of crimping Cu/AL cable connectors from 150mm2 to 630mm2. There are total 7 sets standard crimping dies sold with CO-630HE



Tools Specification

1. Application: Crimp Large Size Cable Connectors

2. Crimping Capacity: 150-630mm2 (Hexagon)

3. Standard Dies: 7 Sets 150 / 185 / 240 / 300 / 400 / 500 / 630mm2

4. Crimpng Head: works with external hydraulic pump (700Bar), Our foot pump CFP-700FT is strongly recommended.

5. Bolt Style Head Design for easy dies remove and installation

6. Plastic Case Package for easy carrying and well tool protection

7. Weight: 5.6kgs Size: 260*88*120mm



Data Sheet

Application
Crimp Large Size Cable Connectors
Crimping Capacity 150-630mm2 (Hexagon)
Standard Dies 150 / 185 / Crimpng Head240 / 300 / 400 / 500 / 630mm2
Crimpng Head Crimpng Head(700Bar)
Weight 5.6kgs
Size 260*88*120mm
