Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Max linepull: | 7.5KN | Continous line: | 25KN |
|---|---|---|---|
| Max linespeed: | 5m/min | Weight: | 450kg |
| Dimensions: | 2300*1250*1620mm | ||
| Cahaya Tinggi: | hydraulic pulling machine,hydraulic tensioner |
||

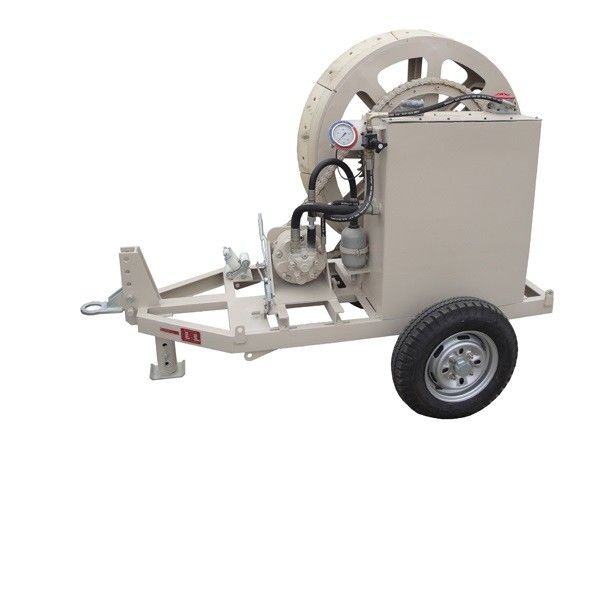

7.5KN winch type hydraulic brake tensioner linespeed 40m/min
Uses:Applied to power construction.
Feature:
1.Adopt retarding with hydraulic pressure;
2.Light and convenient to construct in mountainous area.
| Model | YZM7.5 | YZM7.5-2 |
| Bullwheel bottom of groove diameter(mm) | 1100 | 1100 |
| Maximum tension(KN) | 10 | 10 |
| Dimensions(mm) | 2300*1250*1620 | 2600*1250*1850 |
| Maximum speed(m/min) | 40 | 40 |
| Weight(kg) | 550 | 550 |
Kontak Person: Andy
Tel: +8615651665169
