Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Power Source: | electric engine | Application: | power construction |
|---|---|---|---|
| Usage: | hositing;pulling;lifting | Capacity(KN）: | 50 |
| Speed(m/min): | 6-30 | weight(kg): | 280/300 |
| Dimension（mm）: | 1330*800*600 | ||
| Cahaya Tinggi: | cable winch puller,cable pulling winch machine |
||

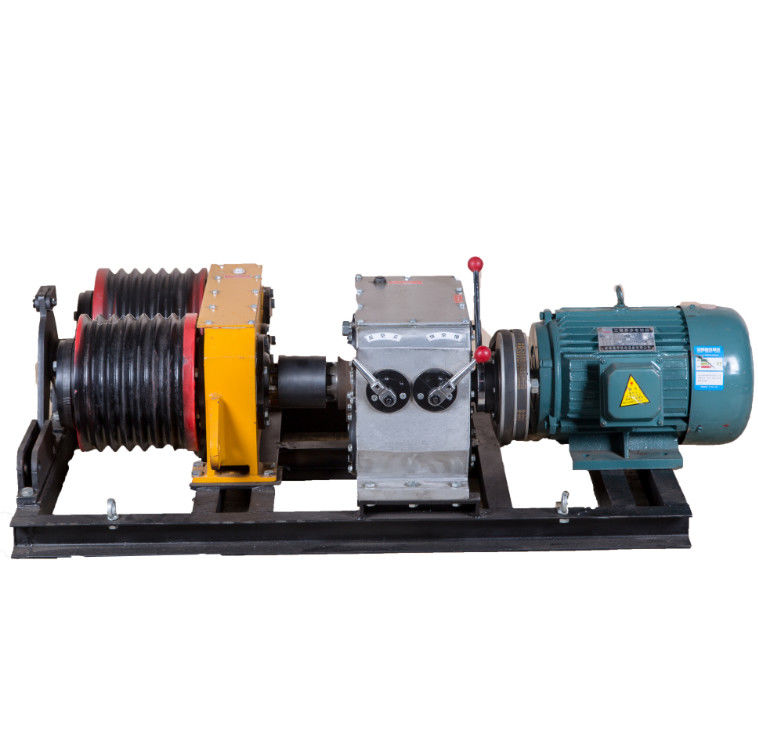

5 Ton Double Capstan Electric Winch for Cable Pulling During Tower Erection
Quick details
1. Transimission line stringing tools
2. Dual-bull wheel powered winch
3. Groove number 7
4. Pull force 50kn
5. weight: 300kg
Application
Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.
Uses
apply to hoisting mechanical equipments and erecting pole pylon . hauling and string conductors in post telephone. telegraph and electric power lines .
Feature
the whole machine is mounted on a framework with wheel hub for easy transportation.
Data sheet
| Model | JJM-5SD | |||||
| Engine | Electric Engine / HODNA GX390 / 186F Diesel Engine | |||||
| Power | 13HP,3600rpm/6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No. Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280/300 | |||||
| Dimension(mm) | 1330×800×600 | |||||
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Quantity?
we'll give you a good price after confirming the above info.
