Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load

I 'm Online Chat Now
Cina SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikasi
Cina SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikasi
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load

Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load
Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load

Gambar besar :  Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load Harga terbaik

Detail produk:
Place of Origin: Jiangsu,China
Nama merek: shenhong
Sertifikasi: CE,BV,ISO
Model Number: SKL
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10 pieces
Harga: negotiation
Packaging Details: cartoon
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 Piece/Pieces per Month
Detil Deskripsi produk
Material: aluminum alloy Function: come along clamp
Rated load: 7-80KN Applicable conductor: ACSR25-1120
Maximum gap: 14-48mm Weight: 1-18kg
Type: gripper Package: cartoon
Cahaya Tinggi:

cable lug crimping tool

,

hydraulic lug crimping tool

Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load



Application

It is applied to adjusting sag in erecting wire and sagging.



Feature

The product is forged of high strength aluminum alloy, compact and light weight.

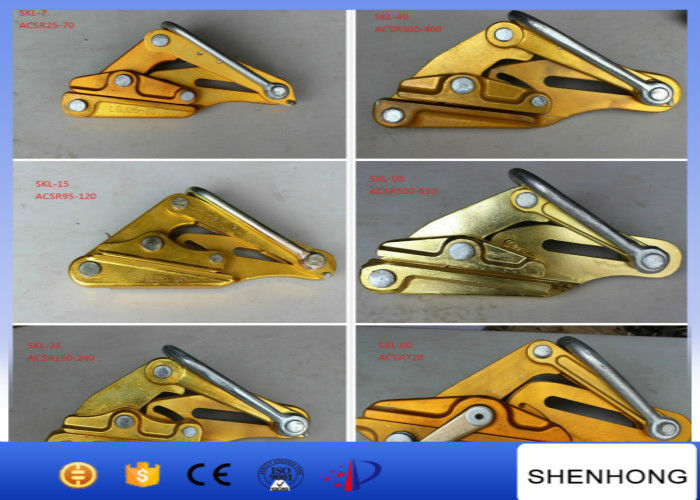

Technical data of Aluminum conductor gripper,cable wire grips for ACSR 7-80KN rated load

Model Rated load(KN) Applicable conductor Maximum Gap(mm) Weight(kg)
SKL-7 7 ACSR25-70 14 1.0
SKL-15 15 ACSR95-120 18 1.4
SKL-25 25 ACSR150-240 24 3.0
SKL-40 40 ACSR300-400 32 4.0
SKL-50 50 ACSR500-630 37 7.0
SKL-60 60 ACSR720 38 9.2
SKL-60A 60 ACSR830 40 11.5
SKL-70 70 ACSR900 42 14.0
SKL-80 80 ACSR1000 46 18.0
SKL-80A 80 ACSR1120 48 18.0



Aluminum Conductor Gripper Wire Rope Grips for ACSR 7-80KN Rated Load 0



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
