Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Application: | Electric Construction | Crimping type: | Hexagon |
|---|---|---|---|
| Crimping range: | 10-120mm2 | Crimping force: | 12ton |
| Stroke: | 14mm | Weight(kg): | 4 |
| Cahaya Tinggi: | cable lug crimping tool,hydraulic compression tool |
||

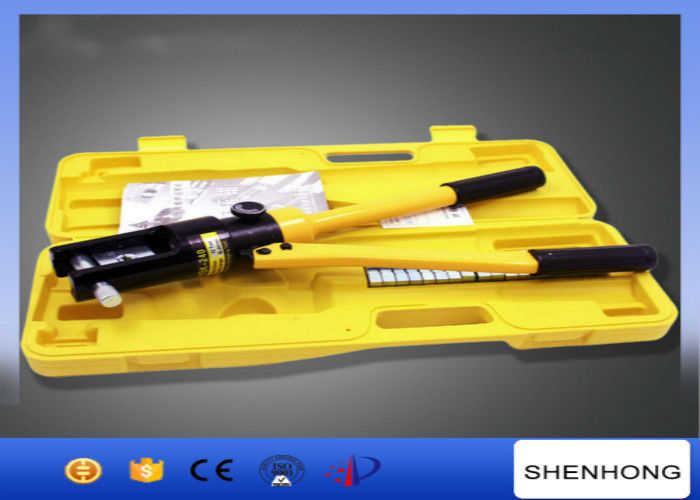

12 Ton Force Overhead Line Construction Tools YQK-120 Hydraulic Cable Lug Crimping Tool Up to 120mm2
General Introduction:
YQK-120 hydraulic crimping tools is a hand-operated self-contained tool. Designed to crimp cable connectors (lugs, splices etc.) onto cables, can be used for cable connection job in electric construction and transmission project. With 8 sets crimping dies, YQK-120 cimping capacity is 10-120mm2.
Hydraulic crimping tool is a professional tool for crimping copper and aluminium lugs with different types, a wide range of crimping dies from 4mm2 to 100mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided.
Feature:
Hydraulic cable plier is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 120 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making.
1. Hand-operated self-contained: no external hydraulic pump is required
2. 8 sets standard crimping dies: for precise crimping
3. Single speed unit
4. Safety value
5. 180 degree rotatable design: for easy operation in narrow place
6. Plastic case package: for easy carrying and well tool protection
| Crimping Range | 10-120mm² |
| Crimping Force | 12T |
| Crimping Type | Hexagon |
| Stroke | 14mm |
| Length | 425mm |
| Weight | 4.00kg |
| Package | Plastic case |
| Criming Dies | 10,16,25,35,50,70,95,120mm2 |
YQK Series hydraulic crimping tool
| Item NO. | Crimping range | Max pressure | Max travel | Mould | Crimping type |
| YQK-70 | 4-70 mm2 | 6T | 12mm | 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2 | Besiege pressure |
| YQK-120 | 10-120 mm2 | 8T | 10mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-120C | 10-120 mm2 | 8T | 14mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-240 | 16-240 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 | Besiege pressure |
| YQK-300 | 16-300 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 | Besiege pressure |
| YQK-400C | 16-400 mm2 | 12T | 22mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 | Besiege pressure |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
1. On behalf of the consumer installation, commissioning products;
2. According to consumer requirements, technical guidance on the use of other aspects;
3. To ensure the supply of maintenance spare parts;
4. Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;
5. To provide consumers with regular telephone interviews;
6. The handling of consumer complaints letters and visits and telephone advice, answer consumer advice.
